GENERAL

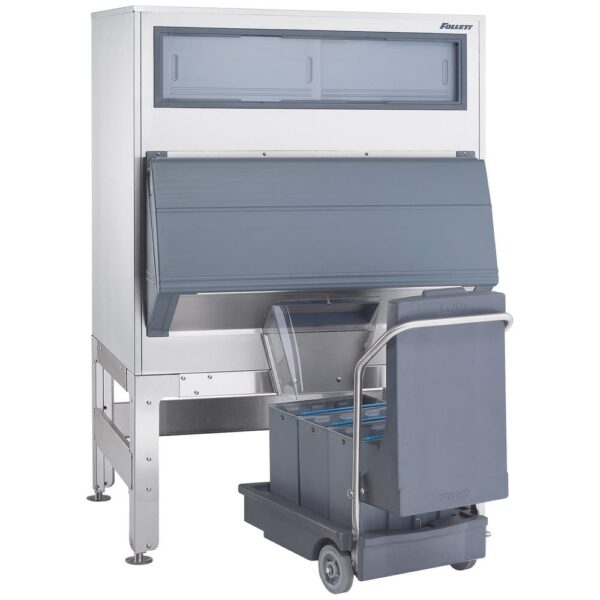

• Insulated ice storage system with insulated carts for distribution
• The model number indicates the number of carts
• Capacities shown include cart capacity
• Each system includes a 1219mm ice paddle
• Basic shuttles are shipped fully assembled and shipping weights include carts
• SL denotes extended sleeves to increase capacity
• Sleeves are shipped separately
• G (Giant) denotes a system that is extended 305mm in depth for added capacity

CLOSURES

• Equipped with a standard reinforced top that will accommodate ice maker. Please call for special application requirements
• Stainless steel closures built to match ice manufacturing specification are included in price for all S/S lined bins. Please specify ice maker to be used at time of order
• S/S tops are fully gasketed, reinforced and cut to ice maker of choice

LEG FRAMES AND ADJUSTABLE FEET

• All models equipped with adjustable bullet and/or flanged leveling feet
• All 16 gauge stainless steel 38mm square tubing welded leg sets

MATERIALS

• Seamless modelled polyethylene liners with 38mm Foamed-in-place polyurethane insulation on SPS-1 and SPS-1G
• Sliding view windows are 6.35mm polycarbonate

• Ice Storage capacity: 408kg/days
• Carts – 1
• Dimensions: 1651mm (H) x 762mm (W) x 914mm (D) )
